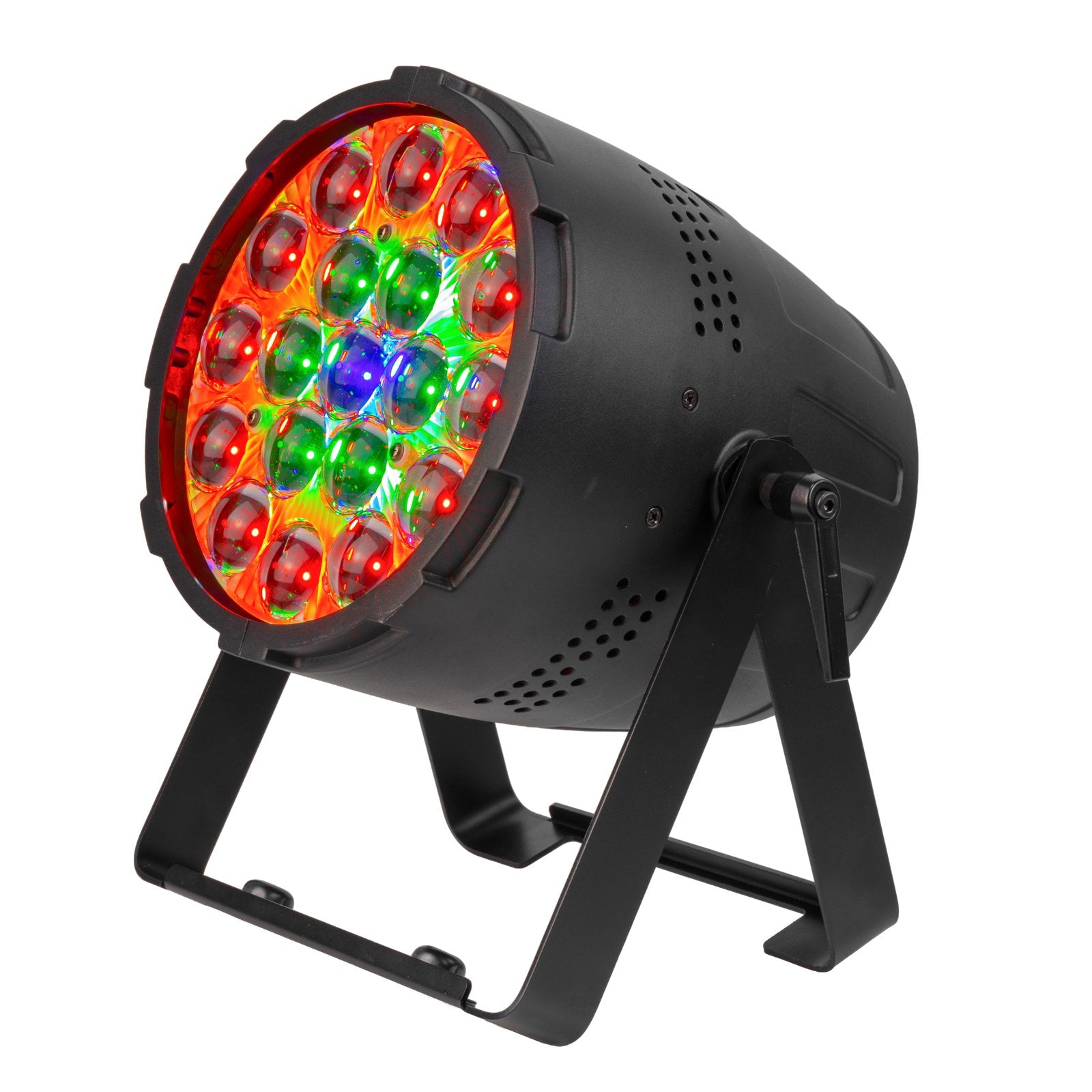

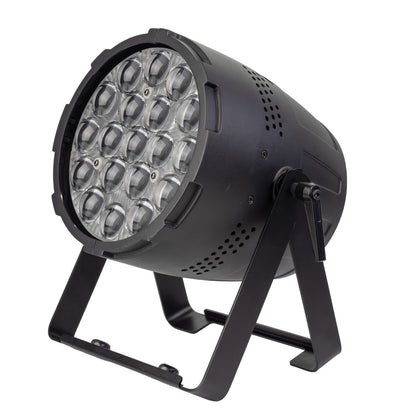

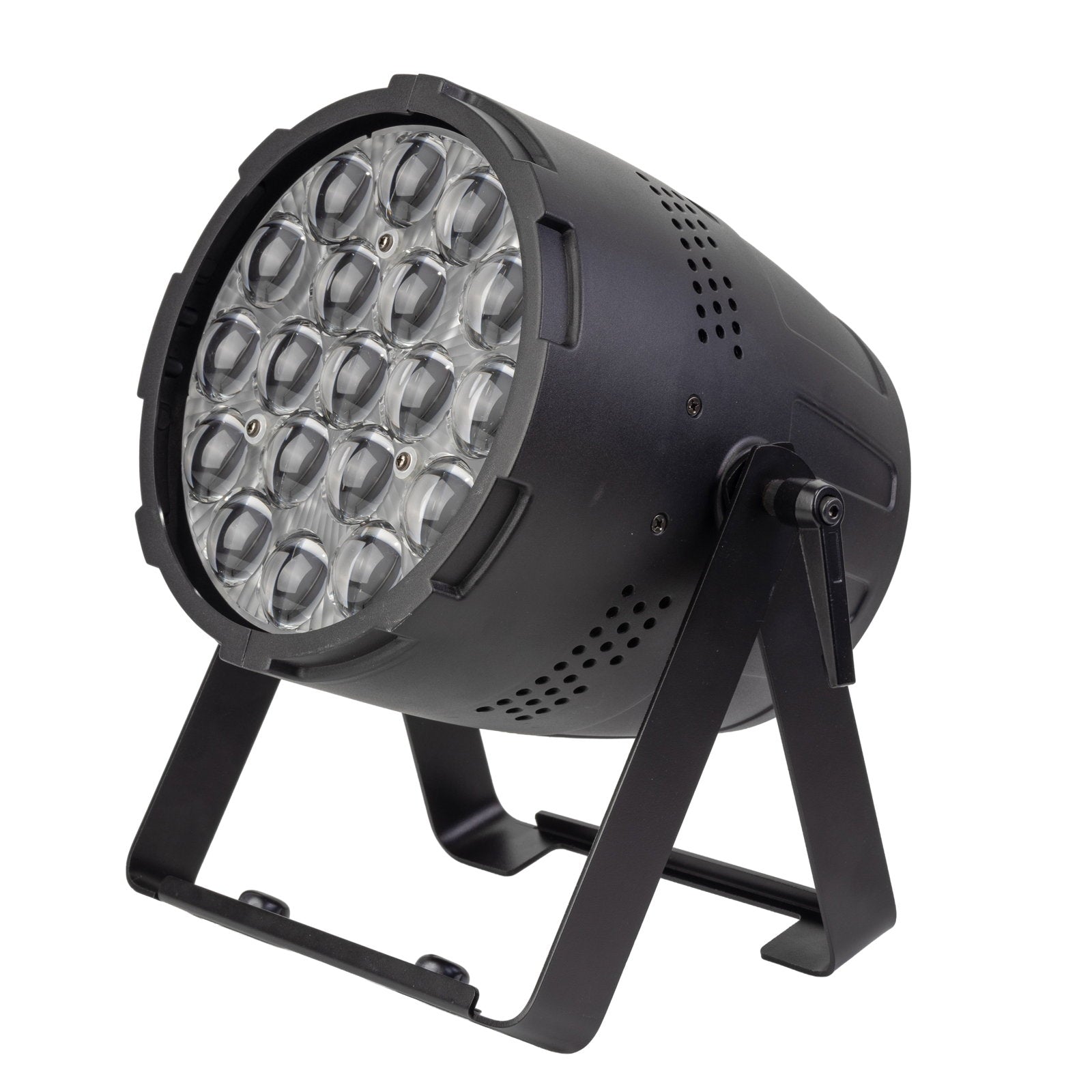

The Equinox 260 Zoom Par is a versatile RGBW LED lighting fixture designed for professional stage event and broadcast use. It features 19 x 15W quad-colour LEDs (RGBW) delivering everything from soft pastel hues to rich saturated colours. The LEDs are arranged in three concentric rings enabling creative pixel zone effects and wide even wash coverage. A motorised zoom range of 10°–50° allows for flexible beam control from tight beams to broad washes. With an adjustable refresh rate (up to 25kHz) this fixture is ideal for TV and film applications. It also includes four selectable dimming curves temperature-controlled fans for quiet operation and a selection of preset colour macros auto programs and colour temperature presets to streamline programming and performance.
Features:
19 x 15W quad-colour LEDs (RGBW)
Adjustable beam angle: 10°- 50°
10° - 27,750 Lux @ 2m (full on),
50° - 2,629 Lux @ 2m (full on)
Refresh rate: 650Hz, 1.5kHz, 3.6kHz, 12kHz or 25kHz selectable
Motorised zoom
Pixel zone mapping
DMX channels: 2/6/7/13/19/21 or 23 selectable
Auto, sound active and primary/secondary modes
0 - 100% dimming
Variable strobe
4 dimming curves: Linear, square law, inverse square law and S-curve

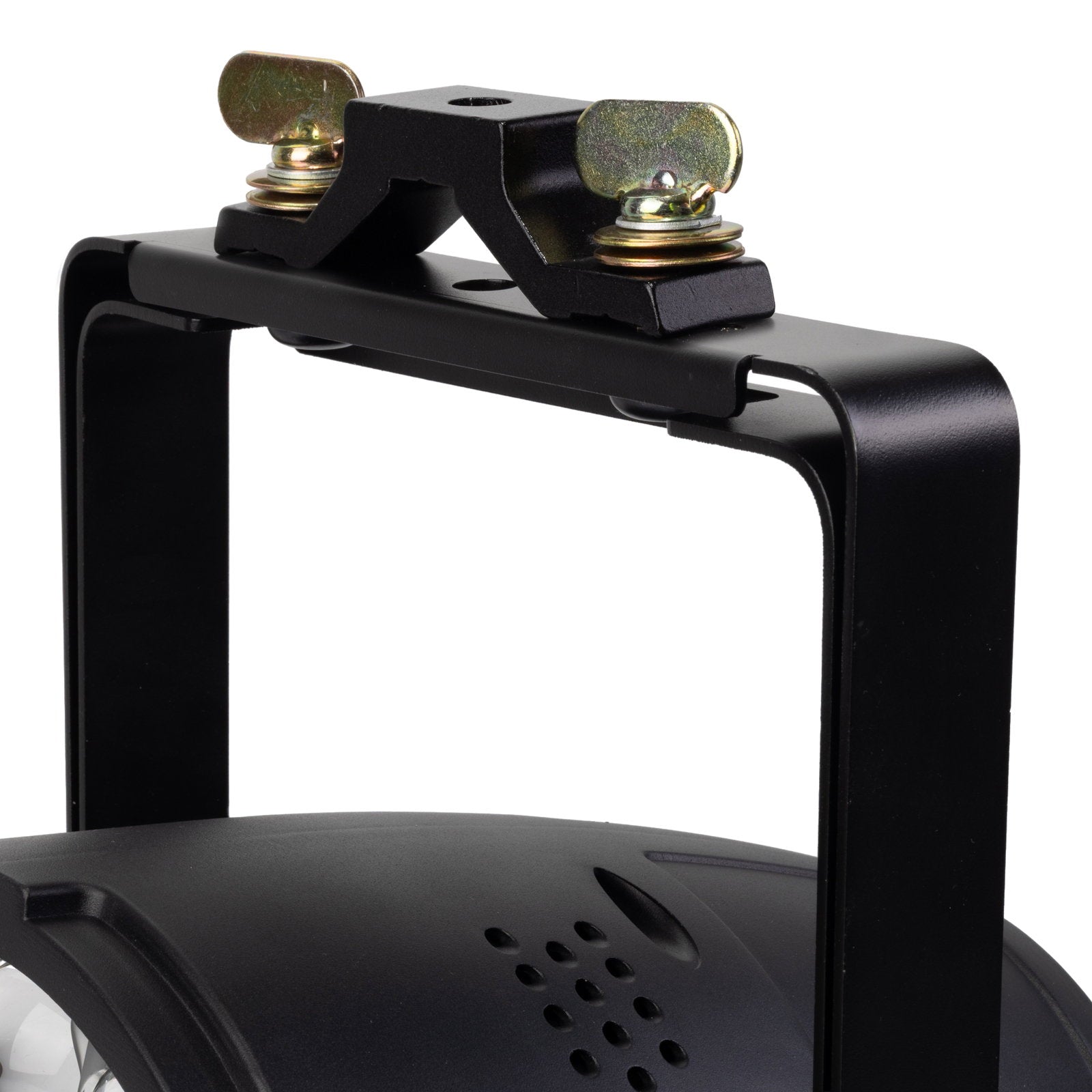

Supplied with quick release omega clamp
4 button menu with LCD display

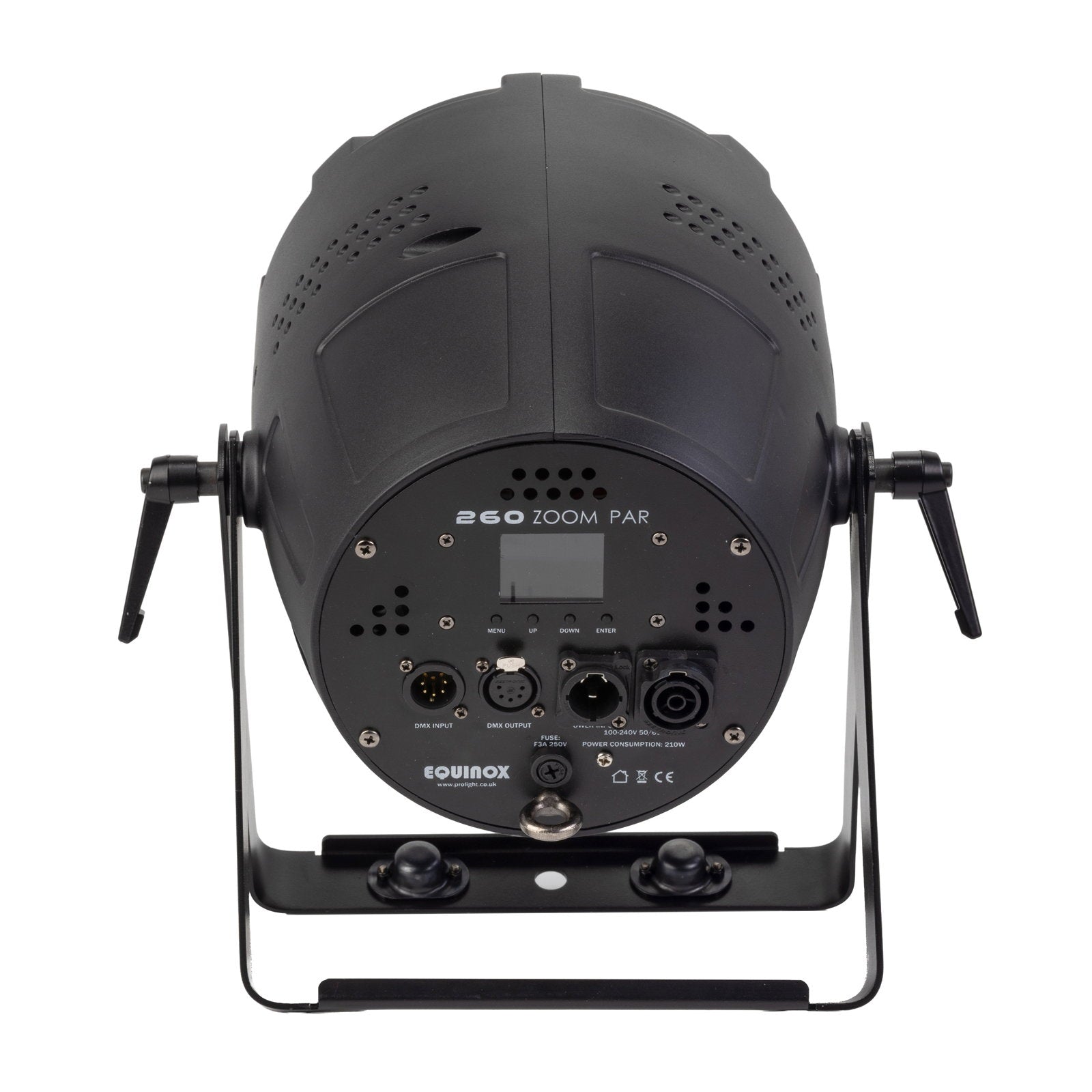

PowerTwist input/output
5-Pin XLR input/output
Temperature controlled fans
Die-cast aluminium chassis
Power consumption: 210W
Power supply: 100~240V, 50/60Hz
Fuse: F3A 250V
Dimensions (H x W x D): 336 x 245 x 225mm
Weight: 4.4kg
