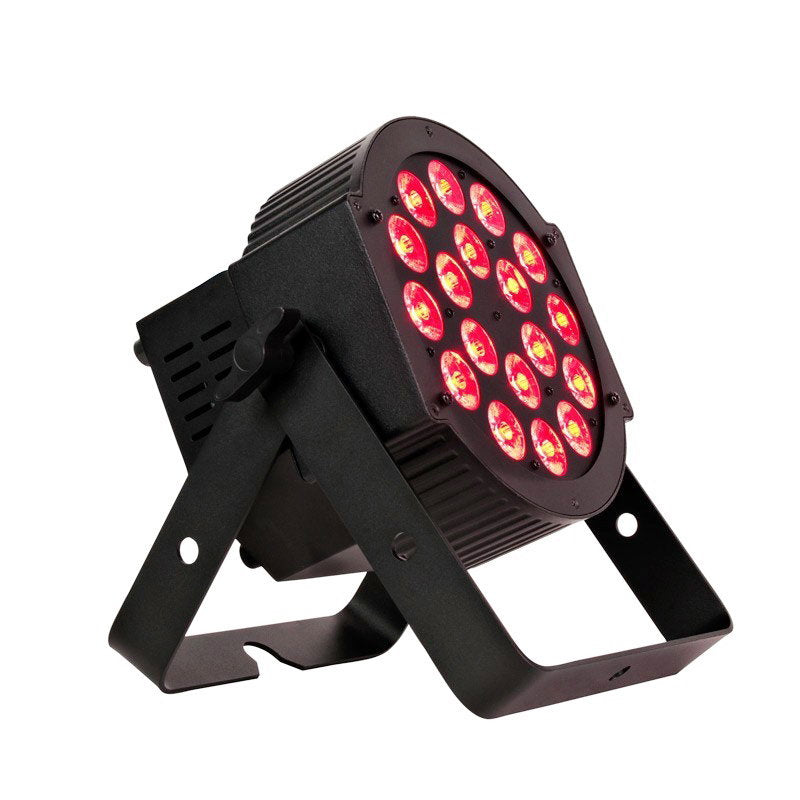

The ADJ 18P Hex is an all-metal powerful 216W LED Par fixture with 18 × 12W 6-in-1 HEX LEDs. With a 25° beam angle users can produce wide washes with smooth colour mixing from 63 built-in colour macros using red green blue amber white and UV LEDs. Not only is this LED Par great for lighting stages but with its intelligently designed power and DMX connectors it’s also ideal for uplighting large venues.
The 18P HEX professional features include: 4 DMX modes (6 7 8 and 12) 5 operational modes 5 dimming curves flicker-free operation and a 4-button DMX menu with digital display. Daisy-chain up to 10 units (110V) or 12 units (240V) via the built-in locking Power In/Out connectors.
The 18P HEX is compatible with the Dotz Par RF wireless remote (sold separately). Alternatively the fixture can be controlled via a DMX controller or its built-in programs. It comes with a metal gel frame allowing a beam diffuser (sold separately) to be used to soften the beam.
Features:
Source:
• Light Source: 18 RGBWA+UV LEDs (Red, Green, Blue, White, Amber & UV LED)
• Individual LED wattage : 12W
• Average LED lifetime :approximately 50,000 hrs.
Optics:
• Beam Angle: 25 degrees
• Gel frame for diffusion filters included (optional diffusion filters)
Control:
• 5 Operational modes: Static Colour Mode, RGBWA+UV Dimmer Mode, Program Mode, Sound Active Mode and DMX Control
• 4 DMX Modes: 6, 7, 8 & 12-channel
• Electronic Dimming: 0 - 100%
• 63 built-in Colour Macros
• 7 built-in Programs, Sound Active Mode
• 5 selectable Dim Curves (Standard, Stage, TV, Architectural, Theatre)
• Optional Dotz PAR RF Remote available (order code 1223200035)
• LED pulse and strobe effect

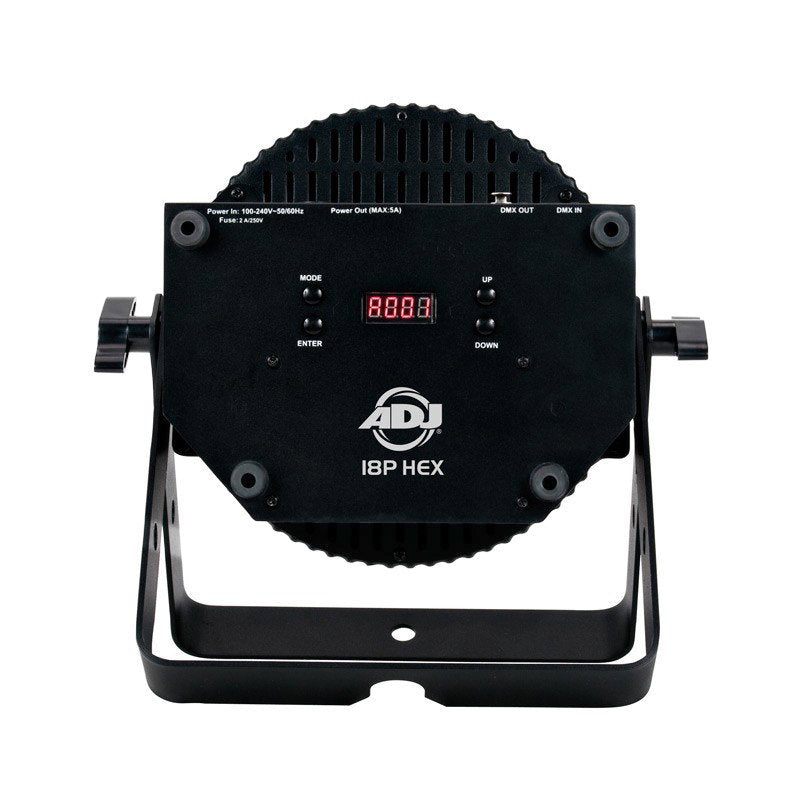

• 4-button, DMX digital display on rear panel
Colours:
• RGBWA+UV Colour Mixing
Construction:
• Metal Housing
• Low Noise fan cooling
• Scissor yoke
Electrical:
• Multivoltage 100-240V 50/60Hz
• Power Consumption: 154W
Connections:
• Sideways 3-pin Locking DMX connectors
• Sideways Locking Power In/Out connections
Dimensions & Weight:
• Dimensions (LxWxH): 304 x 174,8 x 330,4mm
• Weight: 5,9 kg.
